LAUNCH 28 GT
OUTBOARD AND STERNDRIVE ENGINE OPTIONS
LAUNCH 28 GT
The Position of Power.

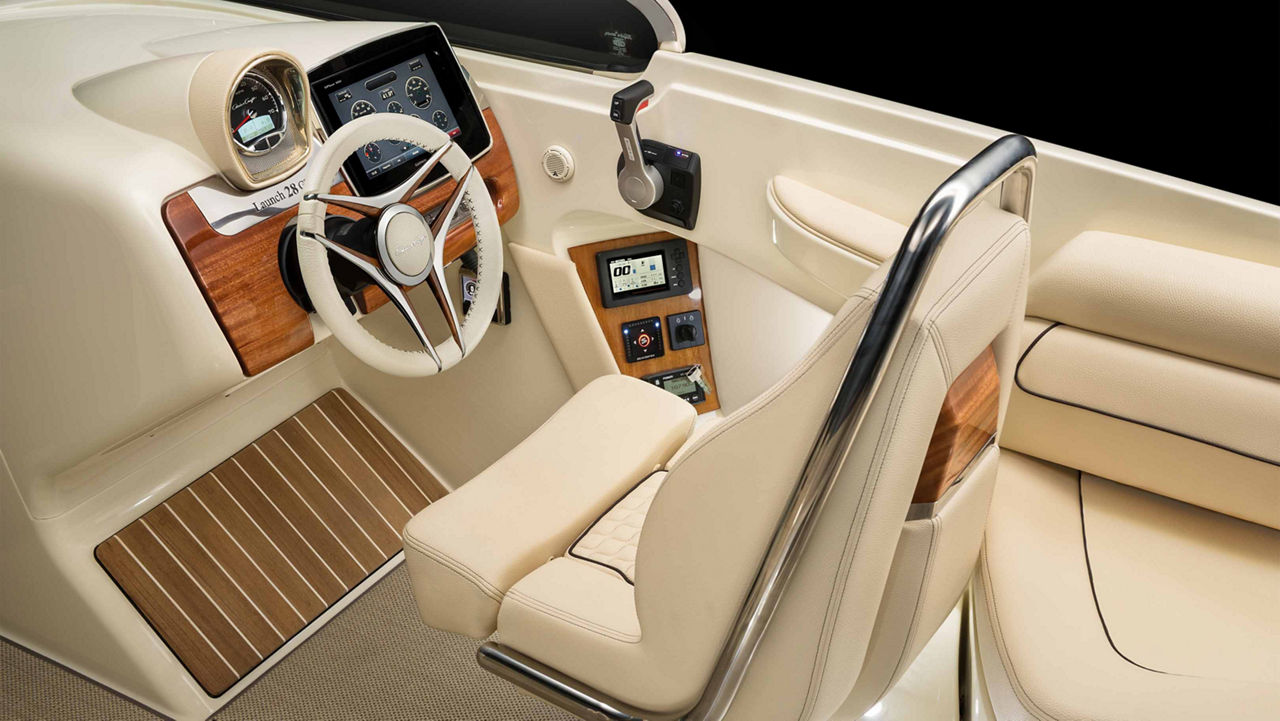

A wide captain’s chair puts you in control behind gleaming gauges and a rich, mahogany steering wheel. The luxurious wave-pattern stitching is complemented by a thick stainless steel bar. And a thigh bolster brings added height and visibility.
Specifications Overview
Length
28'9" 8.72 m
Beam
8'6" 2.59 m
Dry Weight
7,800 lbs 3,538 kg
Capacity
YC persons
Specifications
+
Length overall (w/ swim platform)
28'9"
8.72 m
Waterline length
21'10"
6.65 m
Hull length
28'9"
8.72 m
Beam maximum
8'6"
2.59 m
Beam transom
7'7"
2.31 m
Beam waterline
5'7"
1.7 m
Dry weight
7,800 lbs
3,538 kg
Fuel capacity
85 gal
321.76 ltr
Water capacity
20 gal
75.7 ltr
Deadrise
22 deg
Transom angle
13 deg
Draft, prop raised
17"
43 cm
Draft, prop lowered
36.5"
92 cm
Freeboard forward
40"
1.01
Freeboard at half length
34"
86 cm
Freeboard aft
24.5"
62 cm
Maximum persons
Yacht Certified
Standard Features
+
Teak Maintenance Kit
Teak Caulk Color – black
3 Yr - Chris-Craft protection plan
5 Yr - transferable hull/structural warranty
Bow Scuff Plate - SS
Certifications and Standards - NMMA, ABYC, USCG
Deck Fill Plates - SS
Deck - diamond pattern non-skid, fiberglass
Flag/Pennant - embroidered Chris-Craft and US Flag kit w/SS magnetic pole and base
Color Selections - base gel, Ivory Cream
Color Selections - boot stripe - multiple color selections
Gunnel Trim Rubrail - molded PVC w/SS insert
Hardware - bow and stern eyes, SS
Hardware - bow light cover, SS
Hardware - chrome plated SS fasteners
Hardware - cleats, SS mooring
Hardware - high end fit n finish w/316L SS and Chris-Craft logo
Hardware - thru-hull fittings, SS
Hatches - vacuum infused w/ SS shocks
Hull - Chris Craft trademark Tumblehome design
Hull - deep V bottom w/flared bow
Hull - deck joint - mechanically, chemically bonded
Lighting - navigation lights, SS and international compliance
Logo - SS, Chris-Craft branded

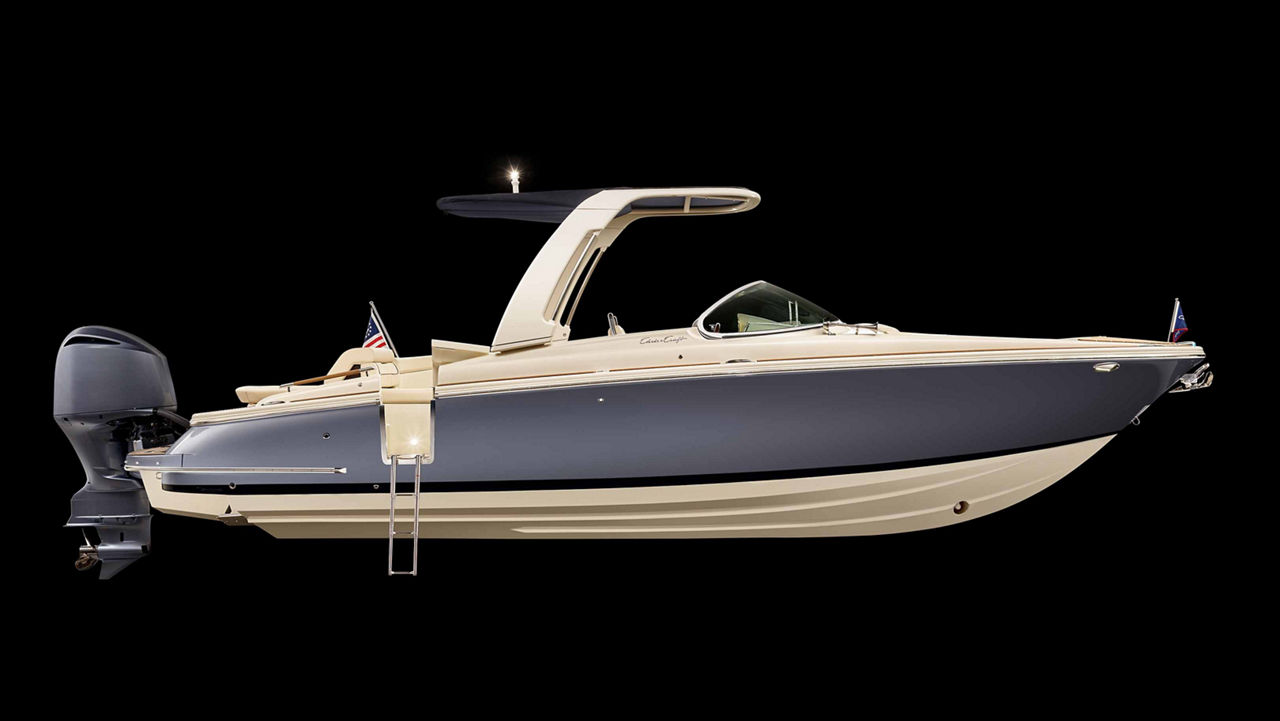

Swim Ladder - 3 step, SS hidden
Swim Platform – integral
Swim Platform Grabhandle - SS
Beverage Holders - Stainless Steel
Bolsters - padded gunwhale mounted
Drains – SS
Fuel System - EPA compliant
Grabrails - SS
Helm - compass, dash mounted
Helm - dash, gauge and switch panels w/silver perforated panels
Helm - dash light dimmer
Helm - ignition safety switch(es)
Helm - model designator, SS
Helm - steering wheel, mahogany
Helm - steering, tilt w/power assist
Helm - stereo remote, MP3/USB inputs w/Fusion Bluetooth enabled
Ladder - Stainless Steel boarding
Lighting - LED courtesy
Outlets/Input - 12v accessory outlet(s)
Outlets/Input - USB auxiliary input
Speakers - JL Audio Sound System
Stereo System - Fusion, AM/FM/Bluetooth/USB
Stereo System - Premium upgrade with amp and subwoofer
Stowage - aft deck compartments
Upholstery Construction - high density foam with antimicrobials and open cell mesh for drying
Vinyl - heavy duty, stain/UV resistant
Vinyl - multiple design/color selections

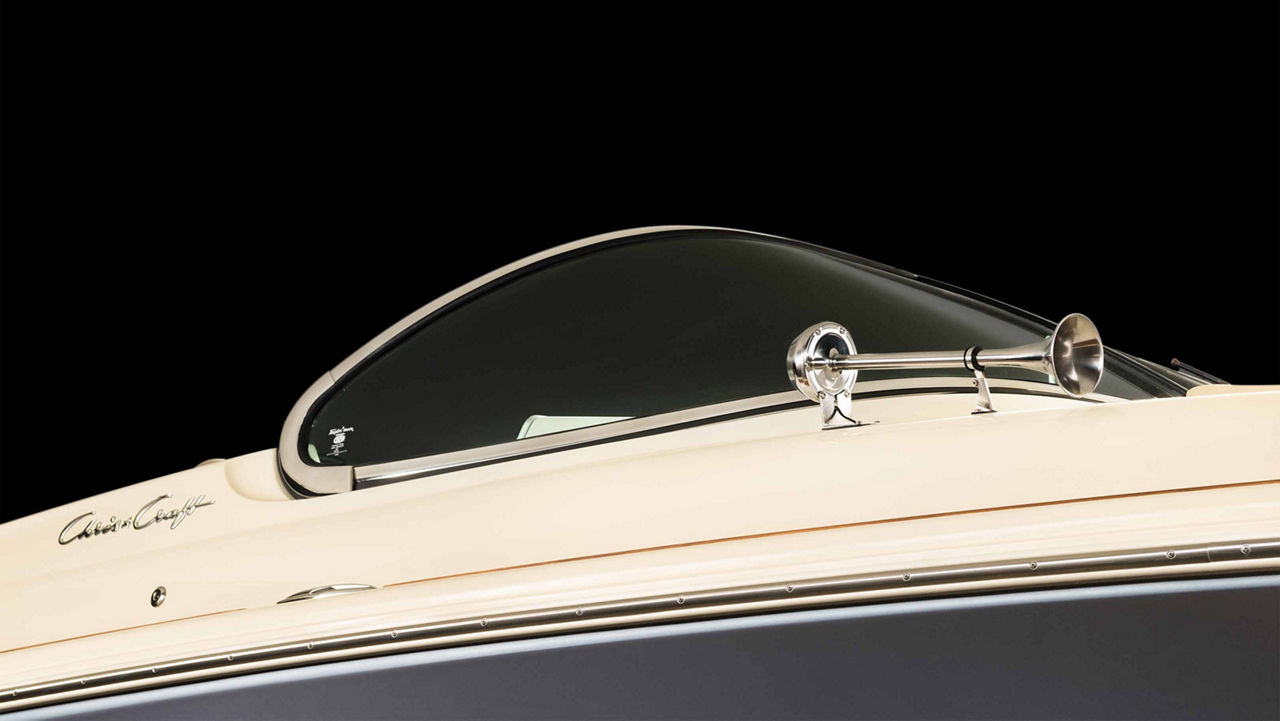

Windscreen - curved tempered glass
Windscreen - Stainless Steel Frame
Battery Charger
Battery Switch w/breakers
Battery Tray(s)
Bilge Pump - w/autofloat System
Electric Wiring - color coded and numbered w/Duetch connectors
Electrical Bonding System
Standard Equipment
+
Mercury V8 6.2L (300 HP) B3 DTS

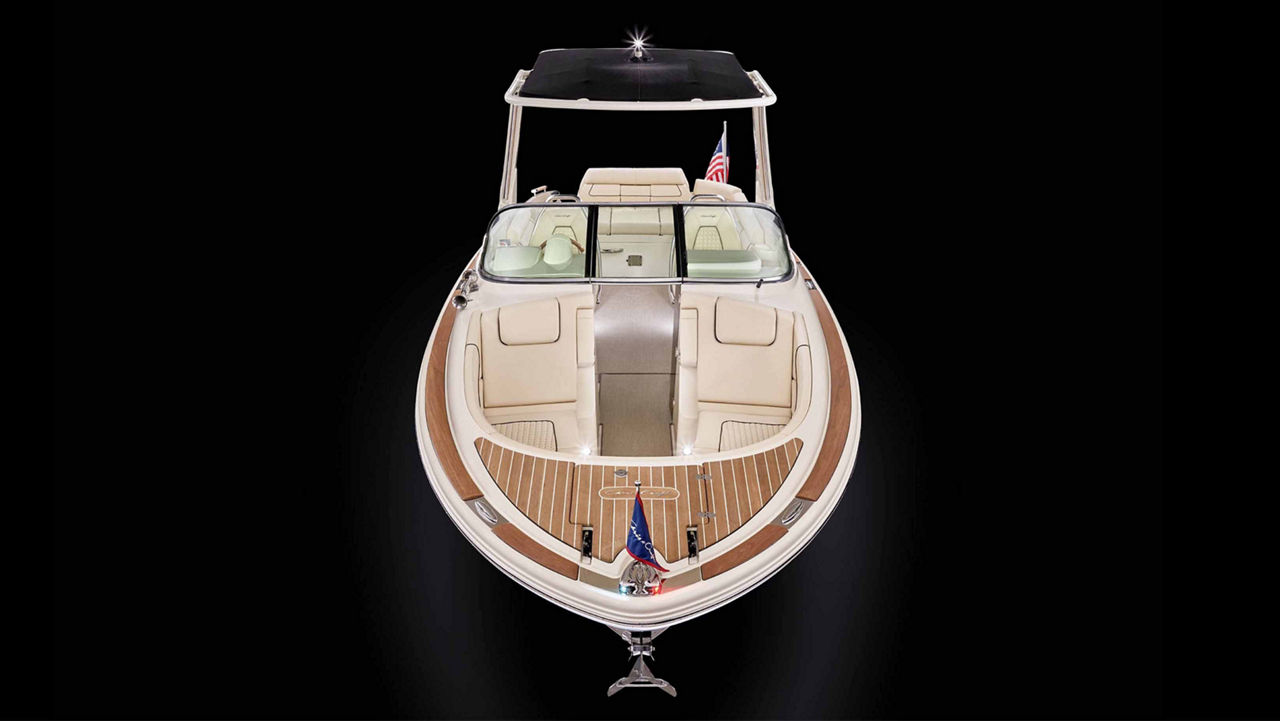

Teak - bow accents w/SS inserts and Chris-Craft SS Logo inlay
Teak - cockpit steps
Teak - beverage holder accents
Teak - engine walk-over

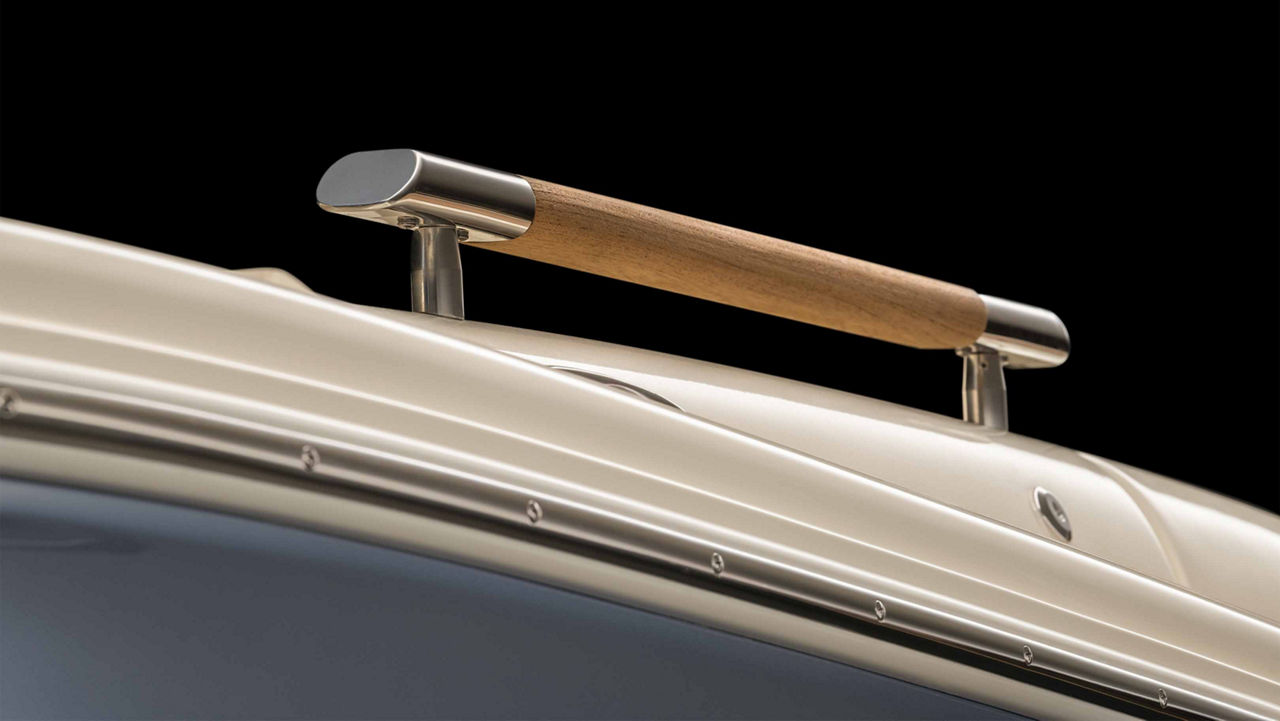

Teak - grab rails (Aft)
Teak - helm footpad / footrests
Air Intakes - SS
Anchor - bow locker - w/teak and Chris-Craft logo inlay
Hull - stringer system and liner, 1 piece fiberglass foam filled for floatation and noise reduction
Ski Pylon - removable (*pop-up)

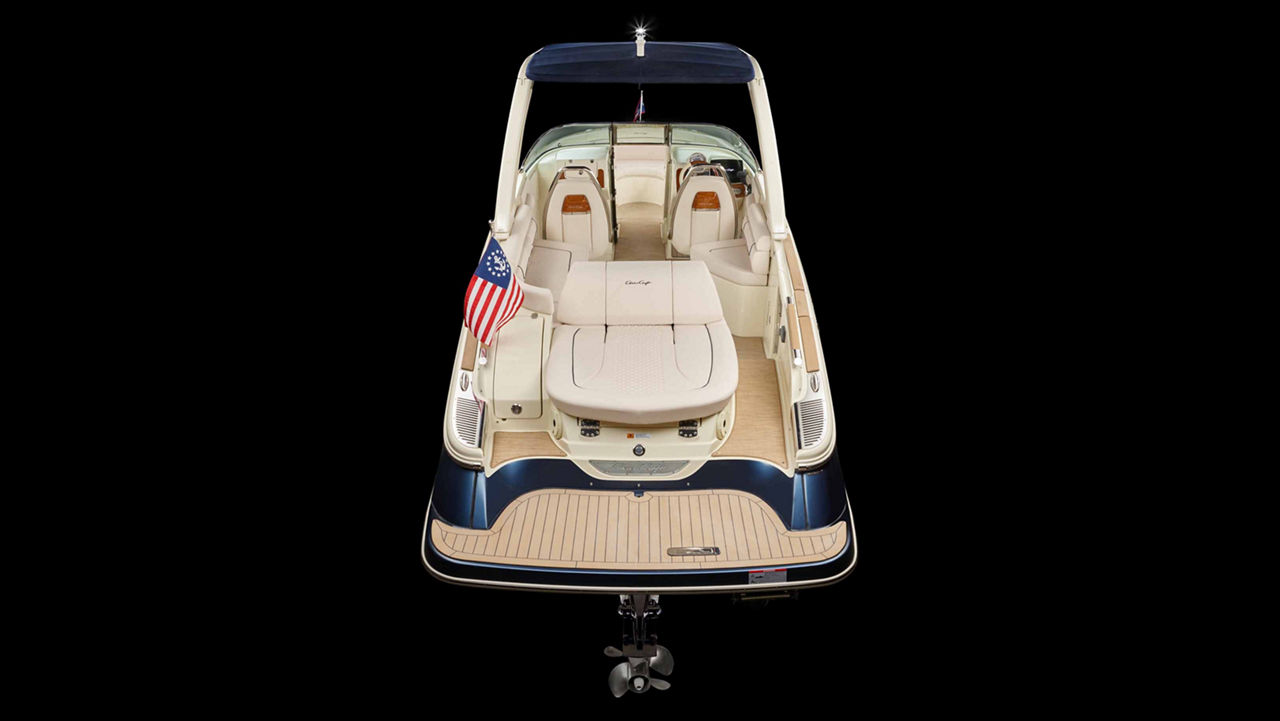

Swim Platform - integral w/ 3-step ladder
Trim Tabs - Lenco
Ventilation Grates/Stainless Steel
Door - wind, hinged, folds to deck in bow area
Galley - refrigerator
Helm - depth finder - LCD

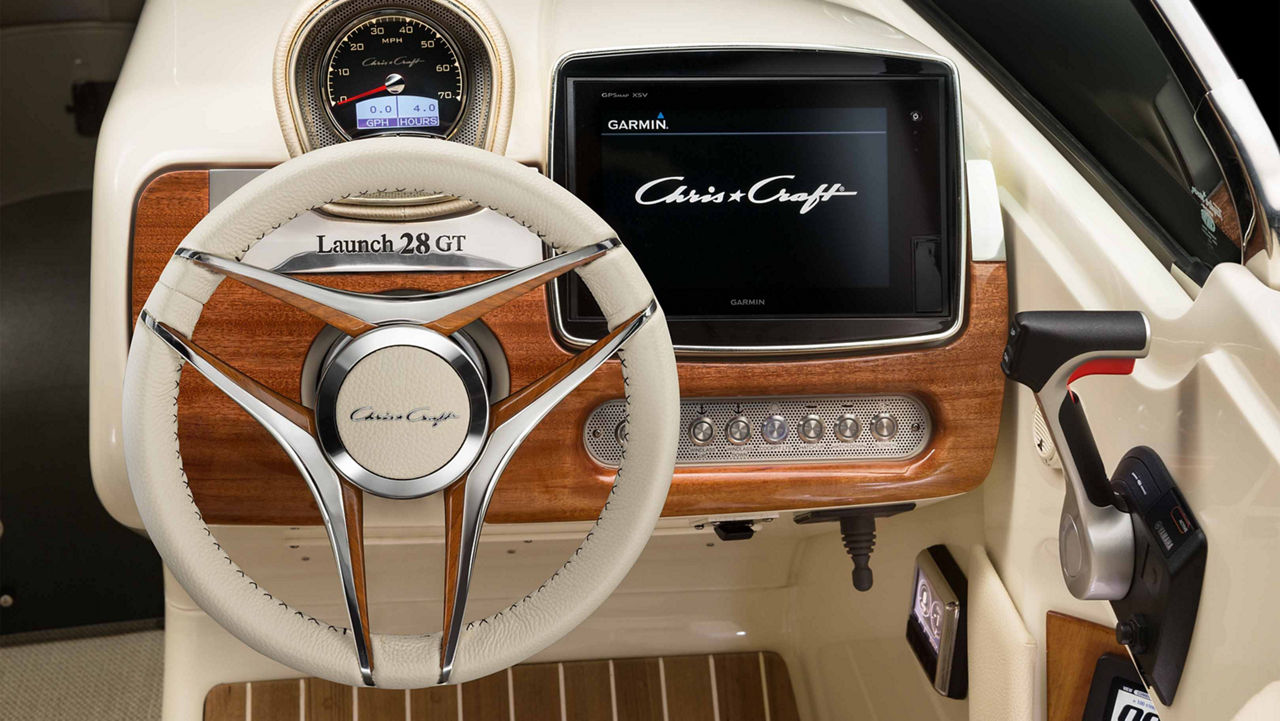

Helm - digital gauge package, Chris-Craft branded
Helm - engine controls, Electronic Control - EVC/DTS/DEC
Helm - Engine control, chrome, side mounted
Helm - horn, electric trumpet(s)
Helm - trim tab controls
Seating - aft cockpit, port and starboard rear facing sun loungers

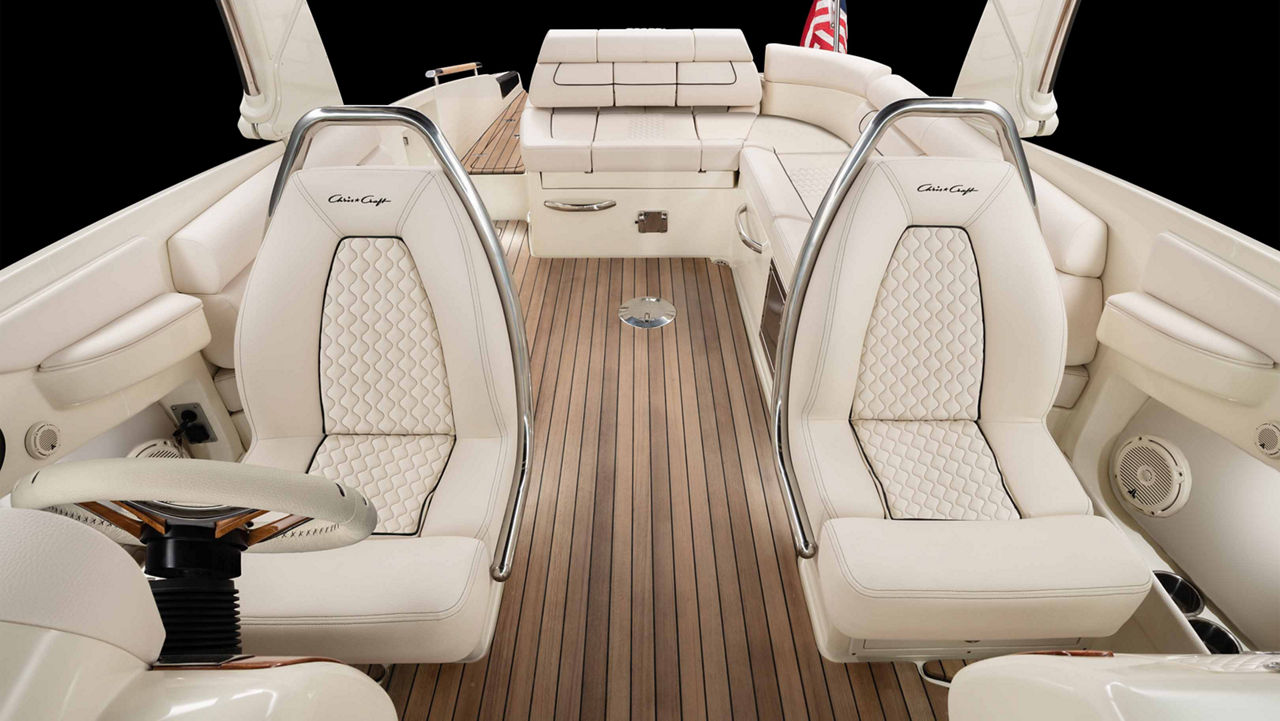

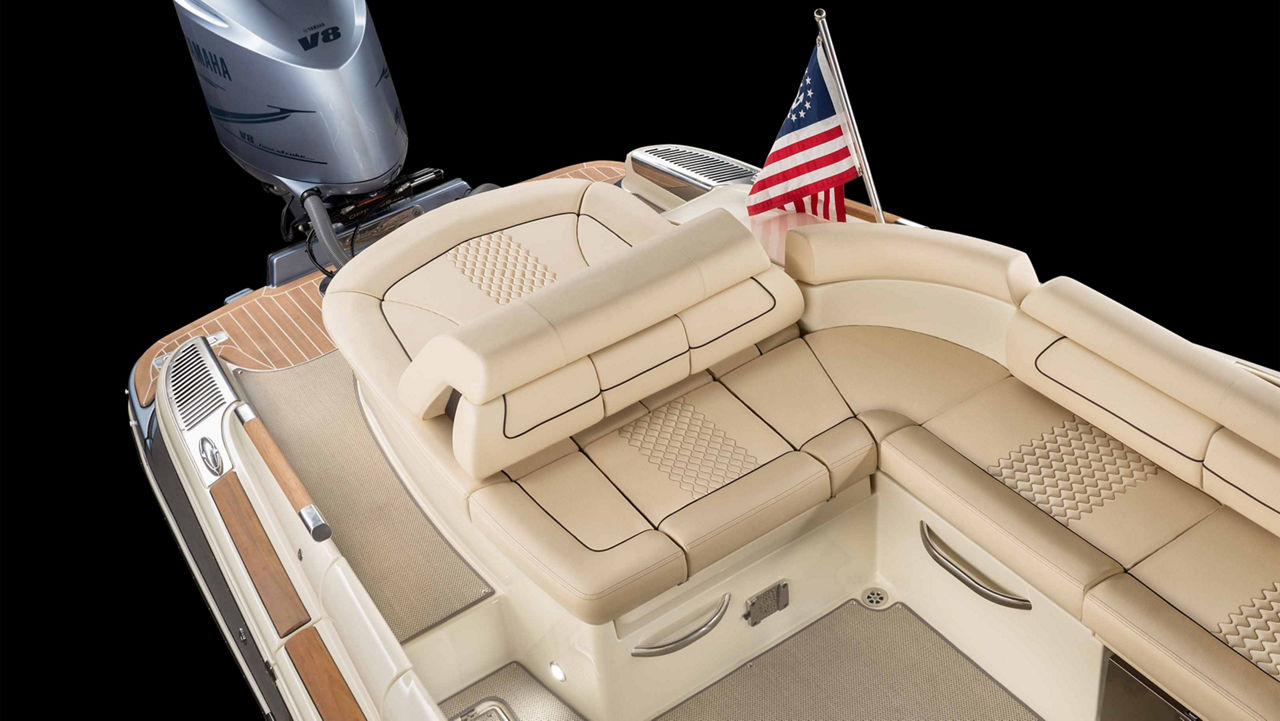

Seating - aft U-shaped Seating - bucket seats w/integrated SS handrails and flip-up bolsters

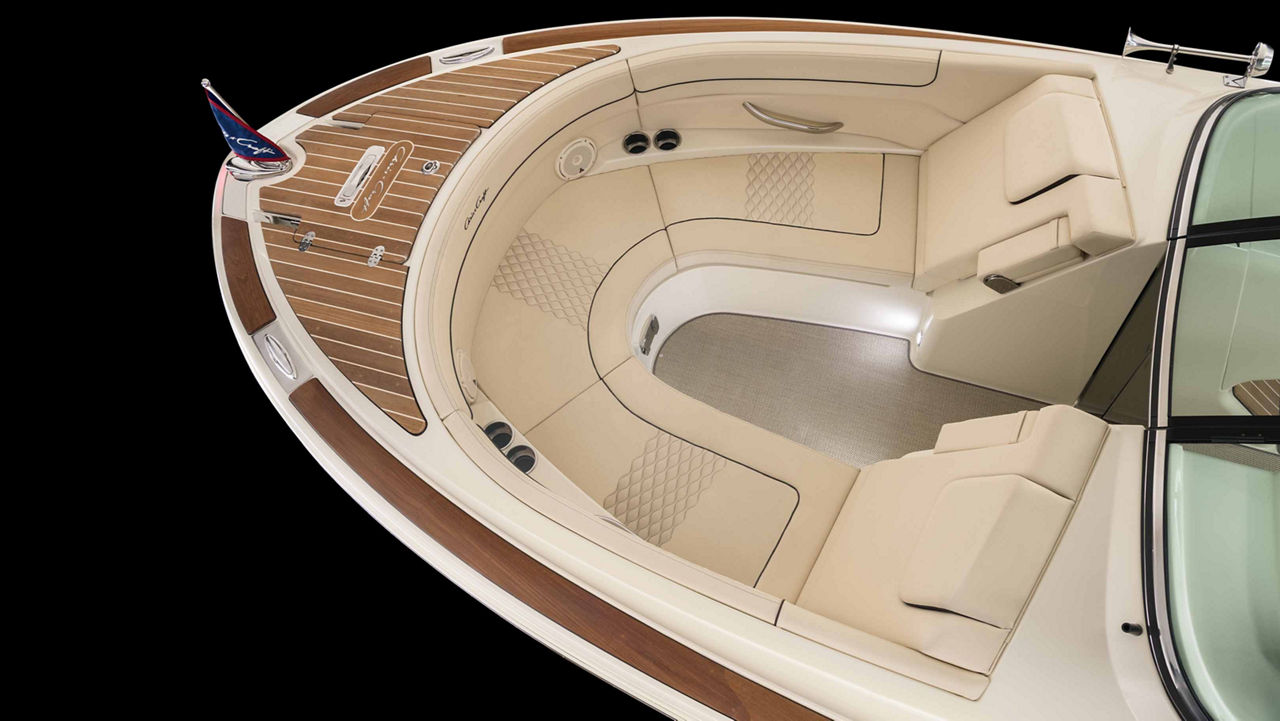

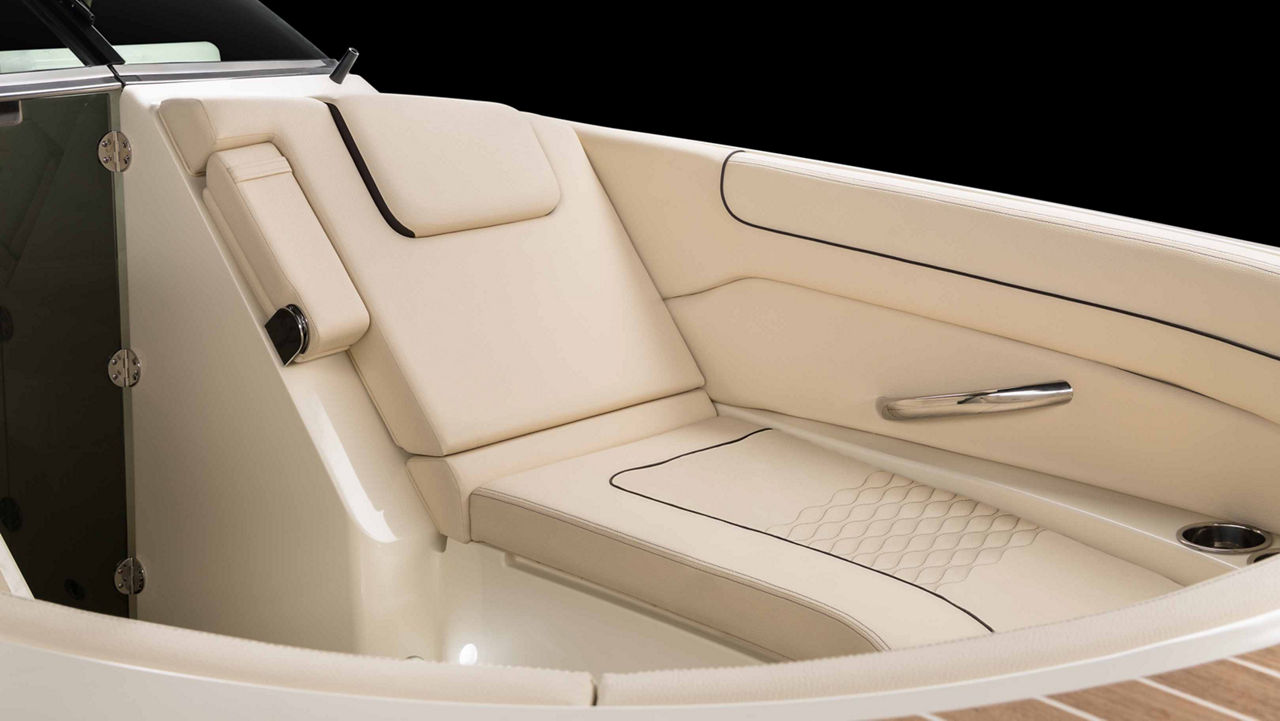

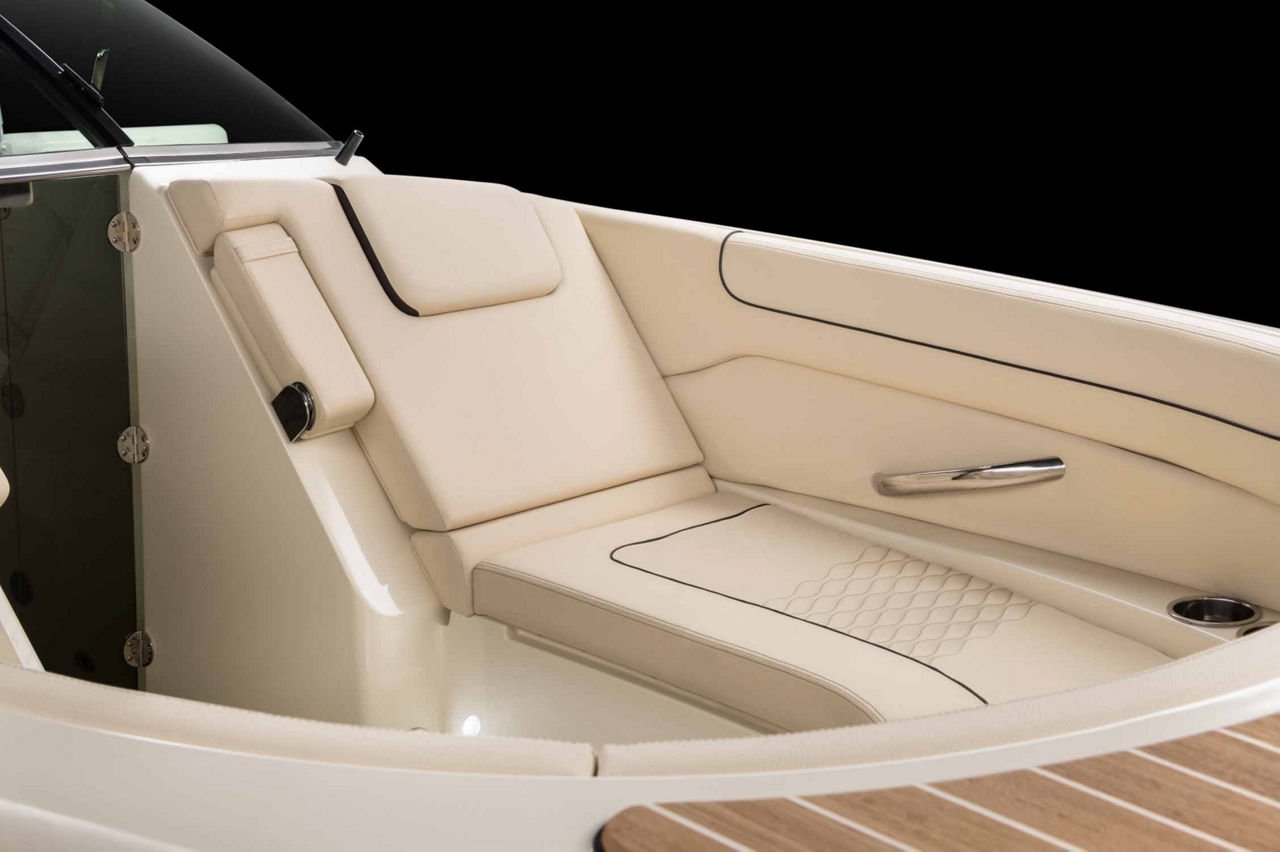

Seating - forward, circular w/forward facing port and starboard lounges
Seating - portside passenger, chair w/flip-up bolster, swivel and SS integrated grab handles

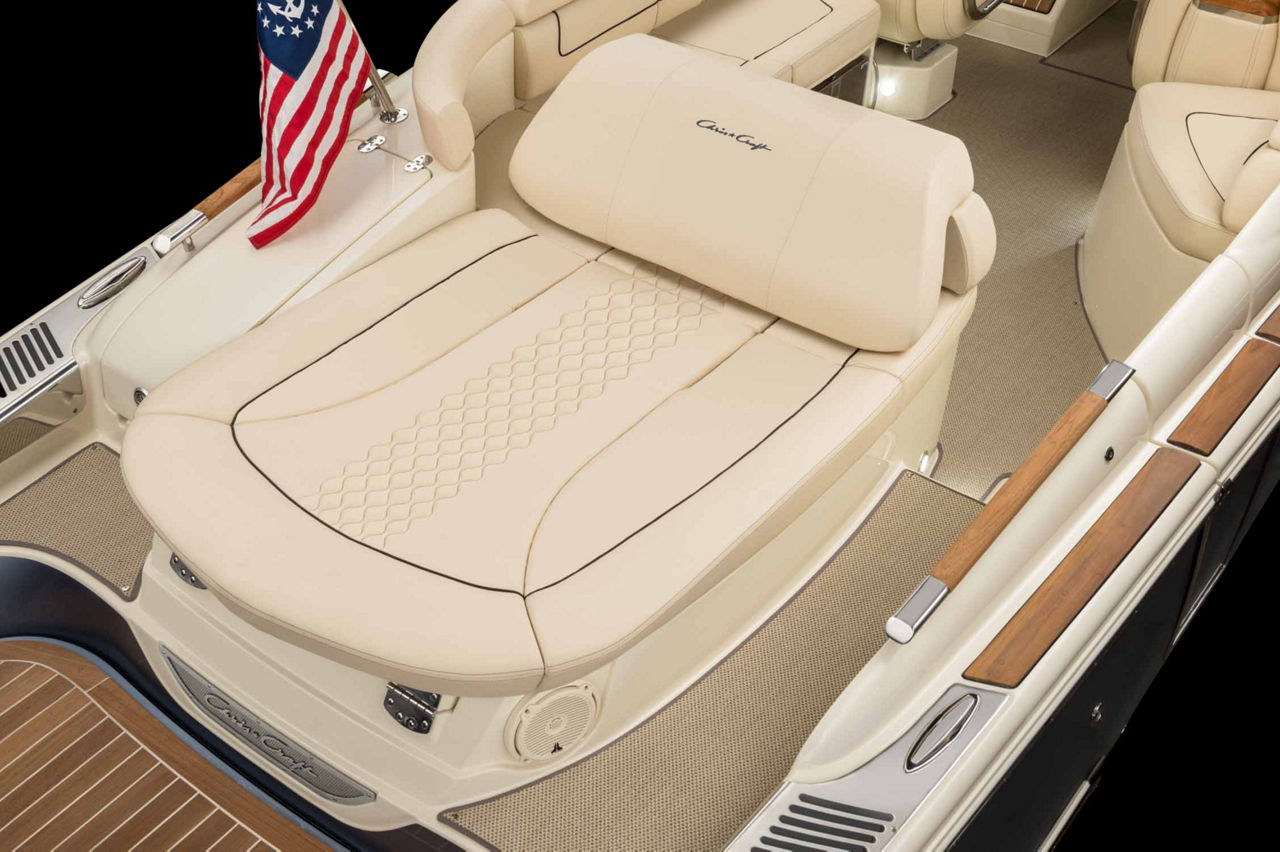

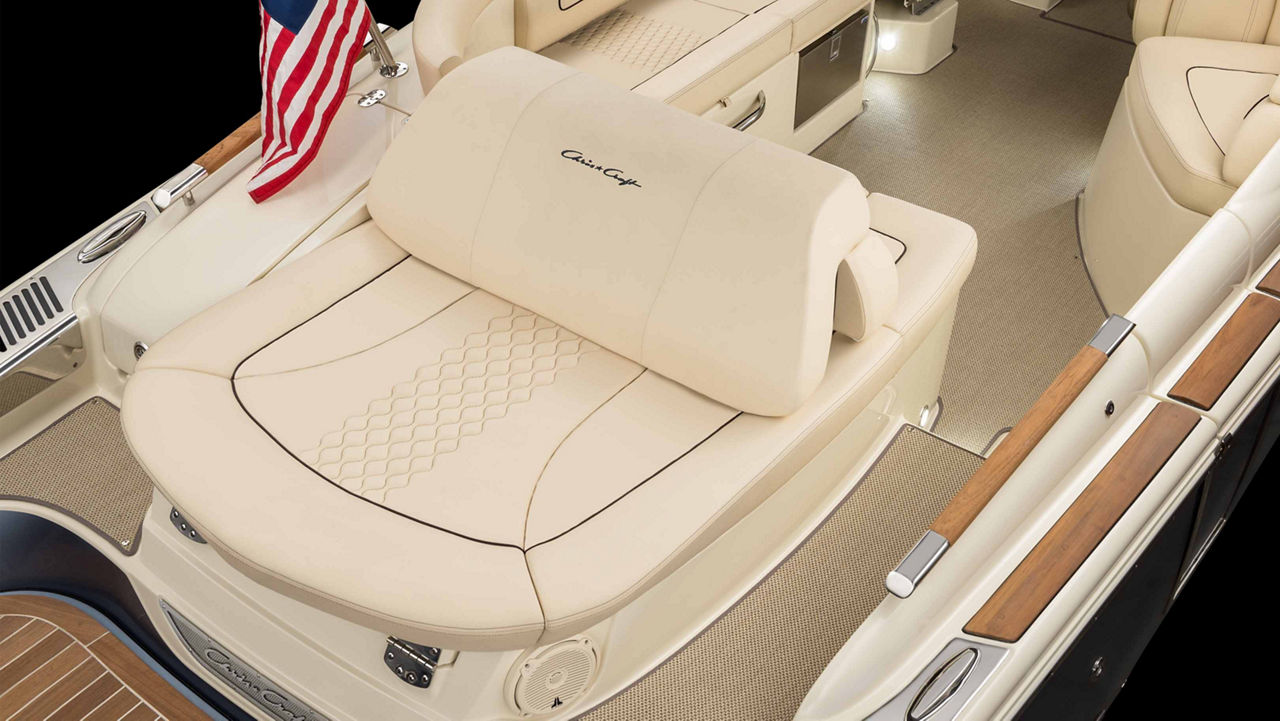

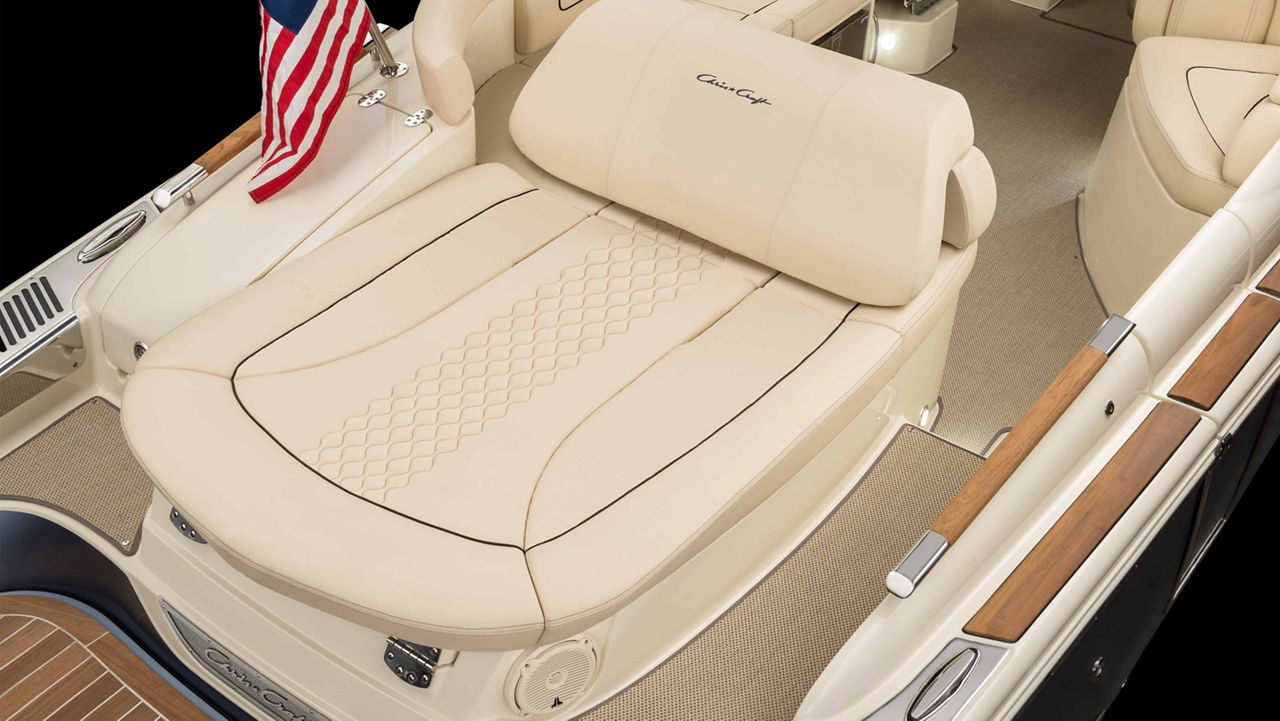

Seating - sunpad, large aft w/ transom walk-over (*includes filler pad)
Shower - transom
Stowage - aft cockpit, underseat
Stowage - bimini, dedicated under engine hatch
Stowage - bow, port and starboard recessed
Stowage - coaming w/beverage holders
Stowage - fender, hidden
Stowage - infloor ski/rod
Stowage - infloor w/built-in cooler

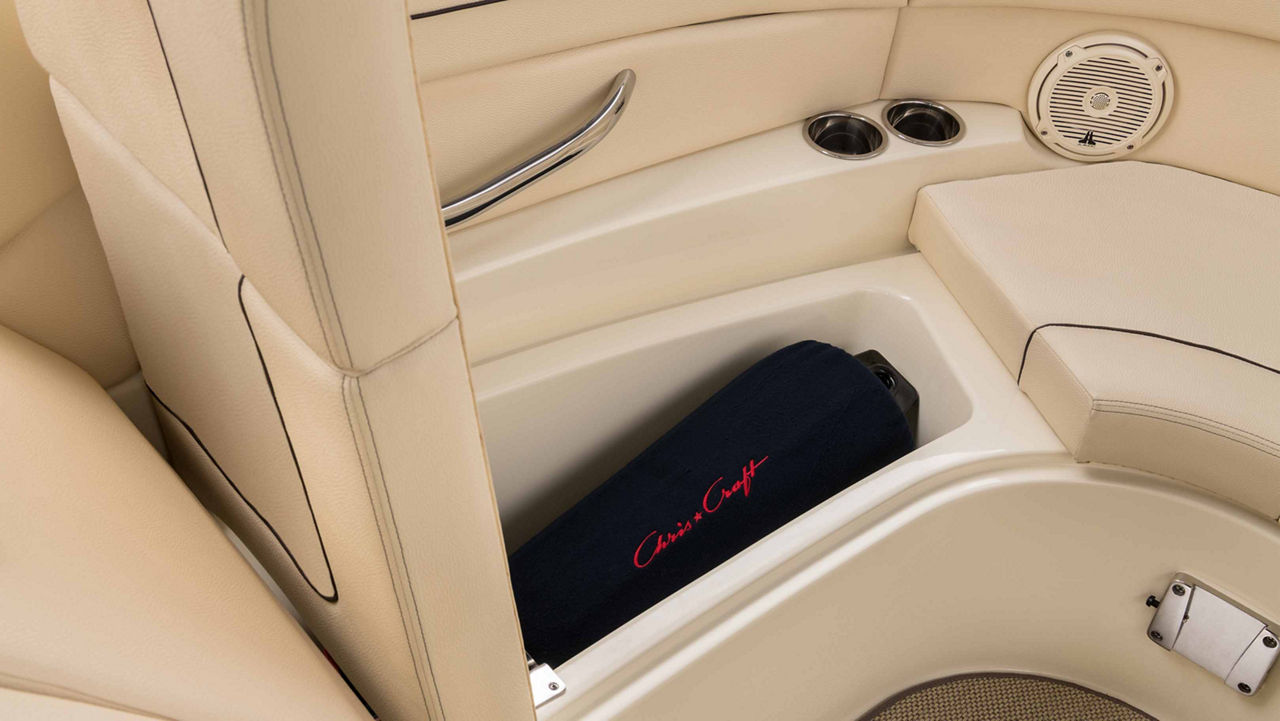

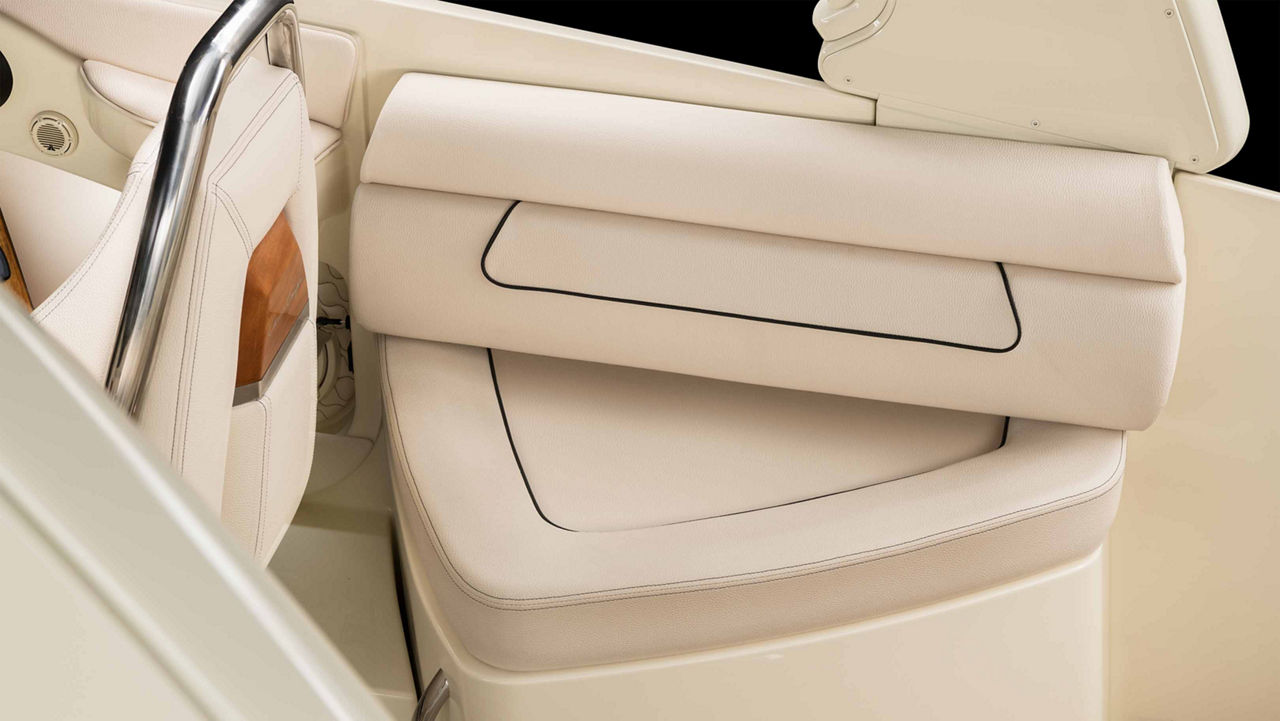

Stowage - port and starboard underseat
Windscreen - tempered glass, center walk-thru

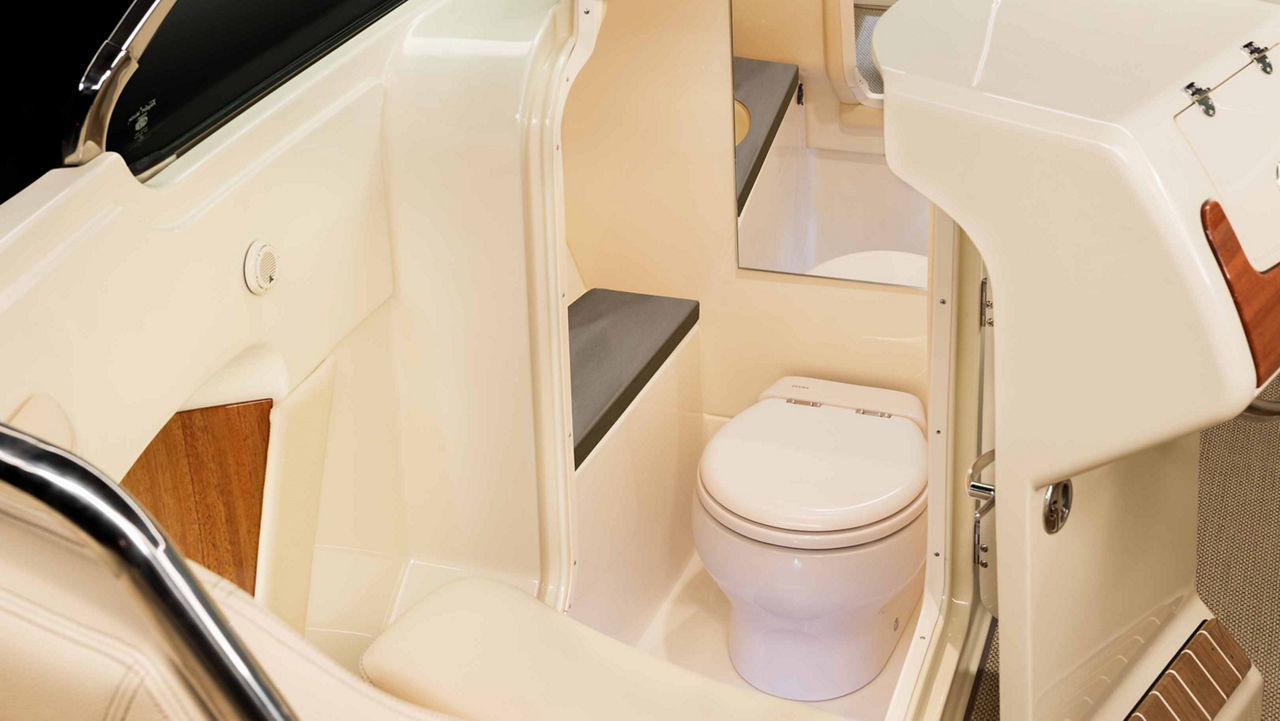

Toilet - porti-potti
Bilge System - electric w/blowers
Electric Wiring - tinned copper
Engine Compartment Stowage
Engine Hatch - emergency lift w/jumper posts
Engine Hatch - w/SS hinges, electric rams
Engine Hatch Insulation - acoustical barrier, Silver Mylar
Fire Extinguish System - automatic w/manual override
Fuel System - aluminum tanks w/anti-siphon valves and electric sending units
Edition Selection
+
Standard Edition (STERNDRIVE)
Standard Edition (OUTBOARD)

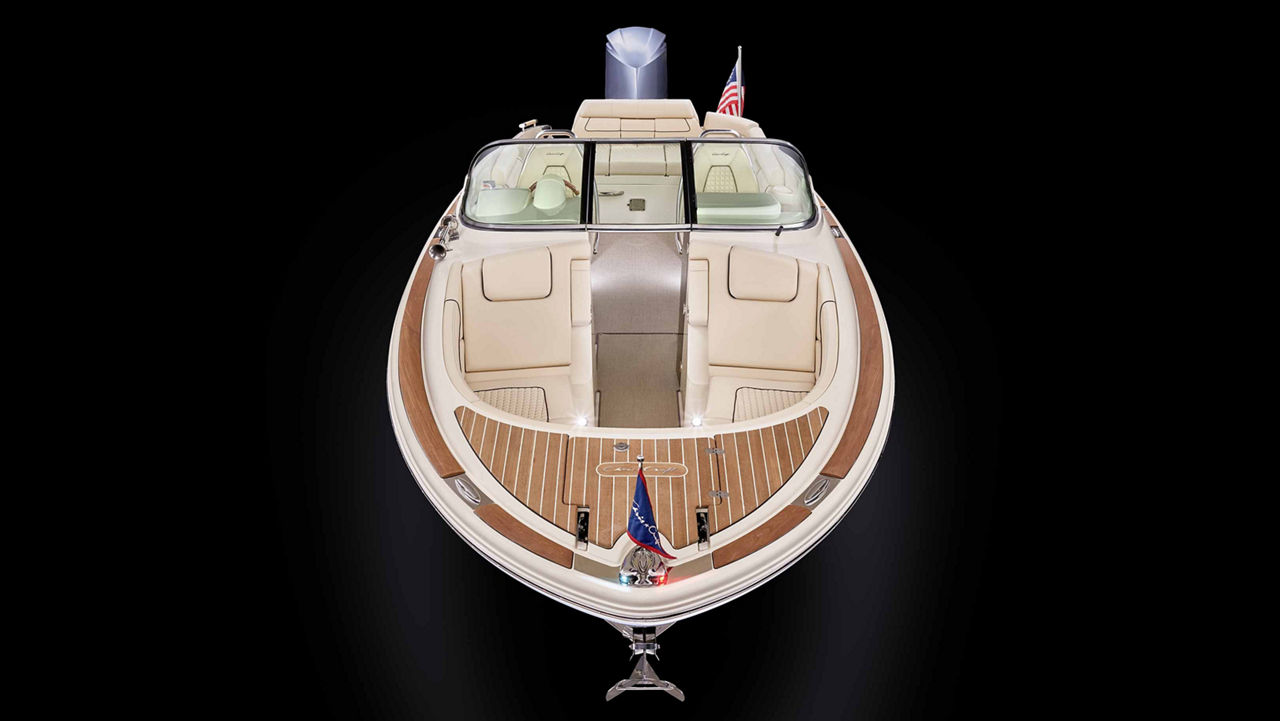

Heritage Trim Edition (STERNDRIVE)
Heritage Trim Edition (OUTBOARD)
Heritage Edition (STERNDRIVE)
Heritage Edition (OUTBOARD)
Top Option
+
Bimini Top
Stowable Mediterranean Cockpit Sun Shade

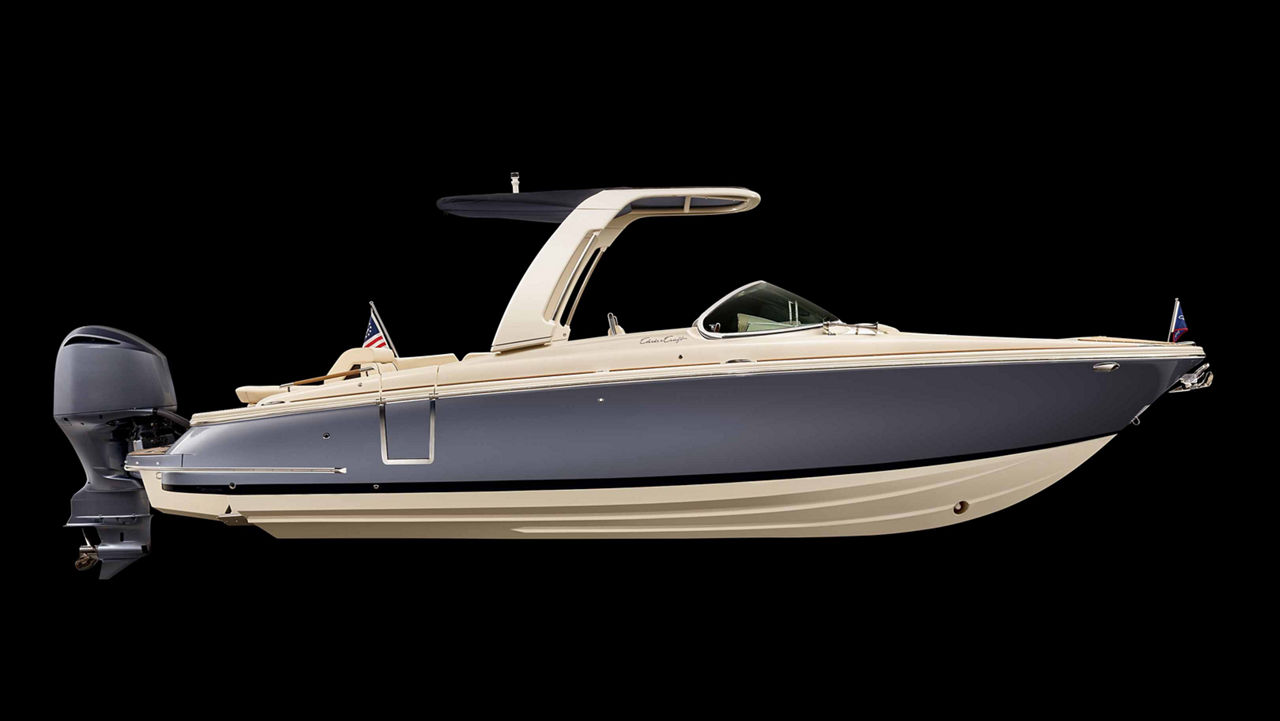

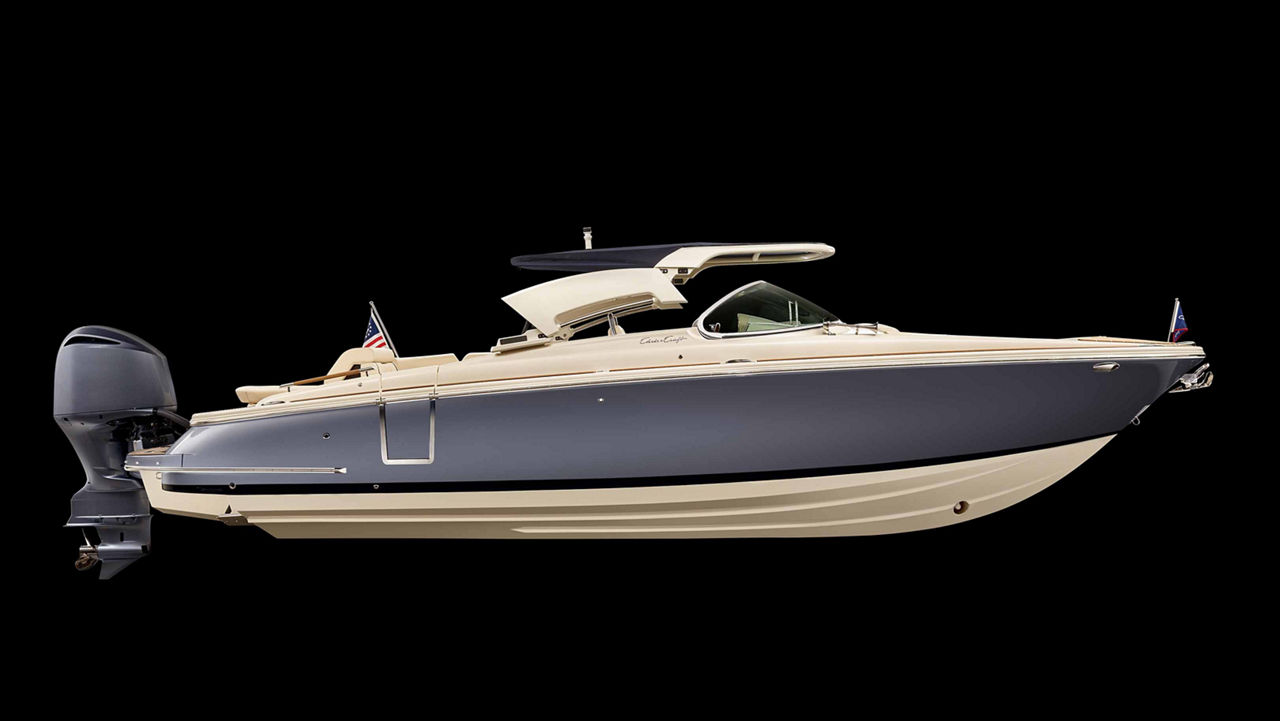

Sport Arch w/Bimini Top & Ski Tow (Power Folding)
GT Hard Top
Engine Type
+
Mercury V8 6.2L (350HP) B3 DTS (STERNDRIVE)
Mercury V8 8.2L (380HP) B3 FWC DTS (STERNDRIVE)
Mercury V8 8.2L (430HP) B3 FWC DTS (STERNDRIVE)
Volvo V8 5.3L (350HP) DP FWC EVC (STERNDRIVE)
Volvo V8 6.2L (380HP) DP FWC EVC (STERNDRIVE)
Volvo V8 6.2L (430HP) DP FWC EVC (STERNDRIVE)
Mercury Verado - Single (350 PSHP) 4 Stroke - DTS (OUTBOARD)
Mercury Verado - Single (400 PSHP) 4 Stroke - DTS (OUTBOARD)
Yamaha - Single (425 PSHP) 4 Stroke - Digital Control (OUTBOARD)
Engine Options
+
Active Trim
Seacore (STERNDRIVE)
Selectable Exhaust (STERNDRIVE)
High Altitude (STERNDRIVE)
Wake Surf (WSX) Technology Package (STERNDRIVE)
Ocean X (STERNDRIVE)
Selectable Exhaust (N/A with WSX Surf Technology Package) (STERNDRIVE)
Ivory Cream Painted Outboard (OUTBOARD)
Custom Color Painted Outboard (OUTBOARD)
Ivory Cream Painted Outboard (OUTBOARD)
Custom Painted Engine Outboard (OUTBOARD)
Gelcoat
+
Ivory Cream
Midnight Blue
Black
Hull Color
+
Ivory Cream - Gelcoat (STERNDRIVE)
Ivory Cream - Gelcoat (OUTBOARD)
Midnight Blue - Gelcoat (STERNDRIVE)
Midnight Blue - Gelcoat (OUTBOARD)
Black - Gelcoat (STERNDRIVE)
Black - Gelcoat (OUTBOARD)
Midnight Blue - Paint (STERNDRIVE)
Midnight Blue - Paint (OUTBOARD)
Frozen Blue (Metallic) - Paint (STERNDRIVE)
Frozen Blue (Metallic) - Paint (OUTBOARD)
Portofino Blue (Metallic) - Paint (STERNDRIVE)
Portofino Blue (Metallic) - Paint (OUTBOARD)
Port Red (Metallic) - Paint (STERNDRIVE)
Port Red (Metallic) - Paint (OUTBOARD)
Fountain Blue (Metallic) - Paint (STERNDRIVE)
Fountain Blue (Metallic) - Paint (OUTBOARD)
Deep Sapphire (Metallic) - Paint (STERNDRIVE)
Deep Sapphire (Metallic) - Paint (OUTBOARD)
Silver Bullet (Metallic) - Paint (STERNDRIVE)
Silver Bullet (Metallic) - Paint (OUTBOARD)
Blue Crystal (Metallic) - Paint (STERNDRIVE)
Blue Crystal (Metallic) - Paint (OUTBOARD)
Champagne (Metallic) - Paint (STERNDRIVE)
Champagne (Metallic) - Paint (OUTBOARD)
Zeus Bronze (Metallic) - Paint (STERNDRIVE)
Zeus Bronze (Metallic) - Paint (OUTBOARD)
Charcoal (Metallic) - Paint (STERNDRIVE)
Charcoal (Metallic) - Paint (OUTBOARD)
Black Pearl (Metallic) - Paint (STERNDRIVE)
Black Pearl (Metallic) - Paint (OUTBOARD)
Stripe Color
+
Riviera Red (STERNDRIVE)
Riviera Red (OUTBOARD)
Midnight Blue (STERNDRIVE)
Midnight Blue (OUTBOARD)
Coach (STERNDRIVE)
Coach (OUTBOARD)
Black (STERNDRIVE)
Black (OUTBOARD)
Cockpit Base Vinyl Color
+
Oyster (STERNDRIVE)
Oyster (OUTBOARD)
Almond (STERNDRIVE)
Almond (OUTBOARD)
Toffee (STERNDRIVE)
Toffee (OUTBOARD)
Chateau (STERNDRIVE)
Chateau (OUTBOARD)
Portabella (STERNDRIVE)
Portabella (OUTBOARD)
Sierra (STERNDRIVE)
Sierra (OUTBOARD)
Azure (STERNDRIVE)
Azure (OUTBOARD)
Cockpit Insert Vinyl Color
+
Oyster (STERNDRIVE)
Oyster (OUTBOARD)
Almond (STERNDRIVE)
Almond (OUTBOARD)
Toffee (STERNDRIVE)
Toffee (OUTBOARD)
Chateau (STERNDRIVE)
Chateau (OUTBOARD)
Portabella (STERNDRIVE)
Portabella (OUTBOARD)
Sierra (STERNDRIVE)
Sierra (OUTBOARD)
Azure (STERNDRIVE)
Azure (OUTBOARD)
Cockpit Vinyl Accent Color
+
Oyster
Almond
Toffee
Chateau
Portabella
Sierra
Azure
Navy
Black
Carbonite
Contrast Stitching Colors
+
Navy
Coach
Black
Teak or Esthec Caulk Color
+
Black
Blonde
Electronic Voltage Selection
+
110V
220V
Additional Options
+
Air Compressor - 12V with Storage Rack
Bow Docking Lights - LED
Bow Filler Cushion
Bow Thruster
CE Certification
Cockpit Galley w/ Sink & Second Refrigerator
Cover - Cockpit & Bow (Color same as canvas top)
Cover - Single Outboard (OUTBOARD)
Dockside Pump Out
Fender Clips (4)
Flooring - Synthetic Teak
Ladder - Beach Boarding
Mediterranean Storable Sun Shade - Bow
Multifunction Electronics Display 10"
Ocean Shipping Cradle
Premium Audio System
Sirius Satellite Radio - USA & CAN Only (no subscription)

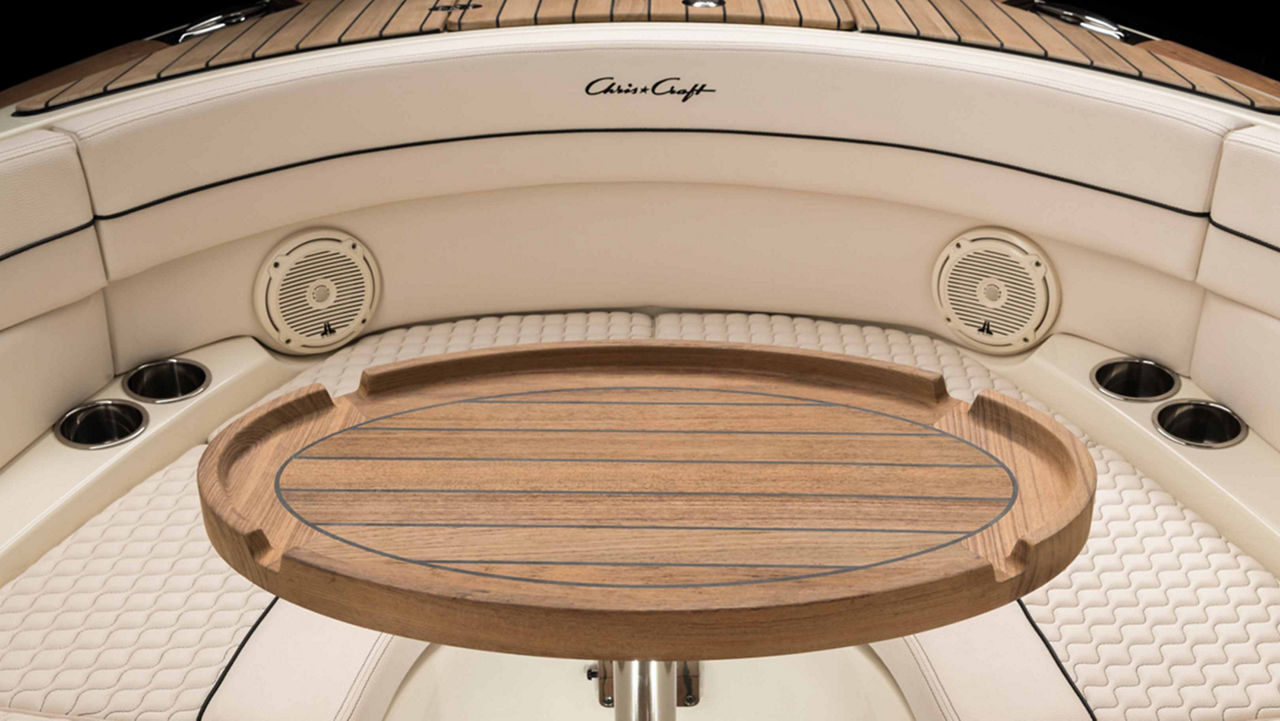

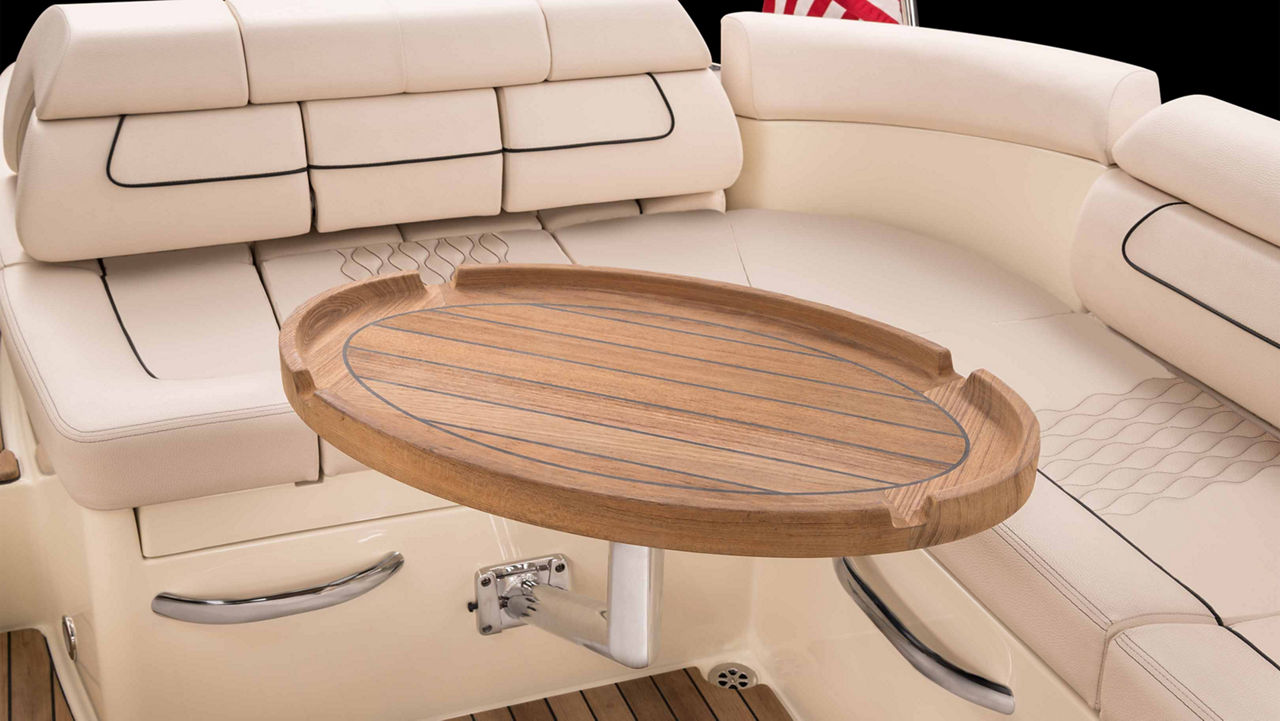

Table - Teak Cockpit
Tecma Head System (includes dockside pumpout)
Underwater Lights (2)
Water Ready Option - Includes Batteries

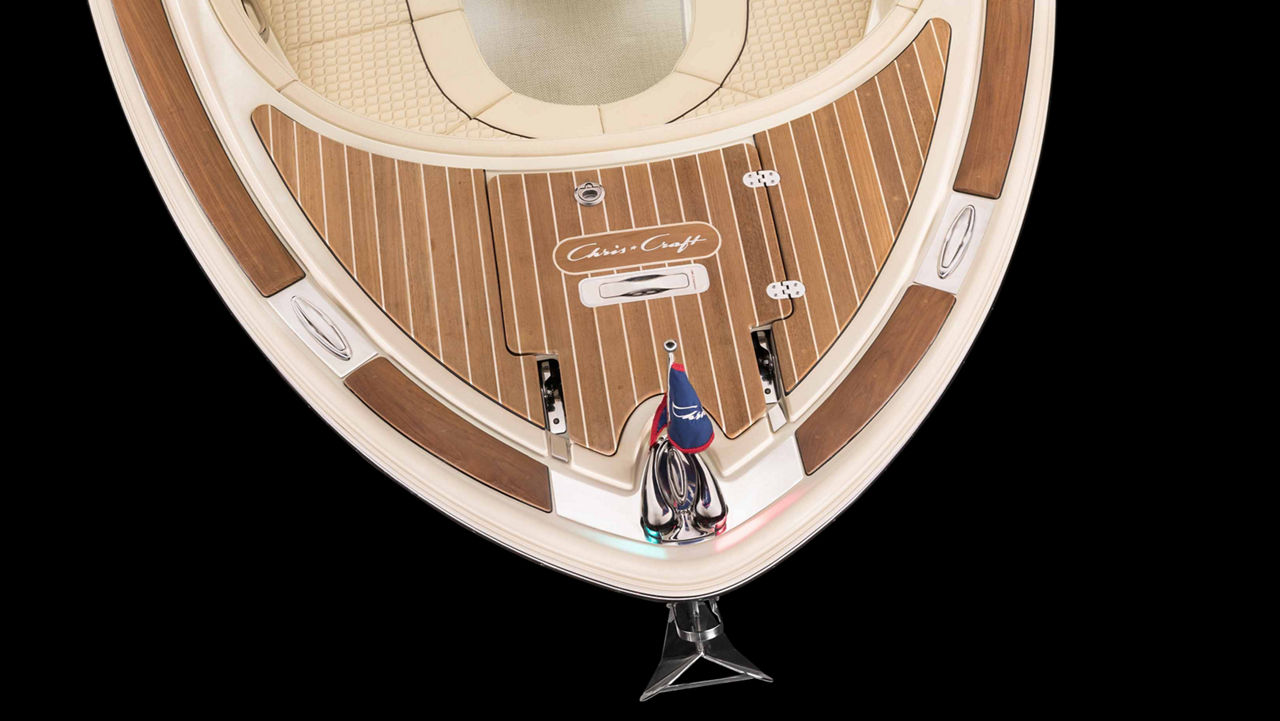

Windlass with SS Anchor and Approx 100' line
Windlass with SS Anchor and Approx 100' chain
Cover - Mooring
+
Navy
Toast
Black
Flooring - Woven Seagrass
+
Boucle
Dune
GALLERY / LAUNCH 28 GT
VIDEO / LAUNCH 28 GT

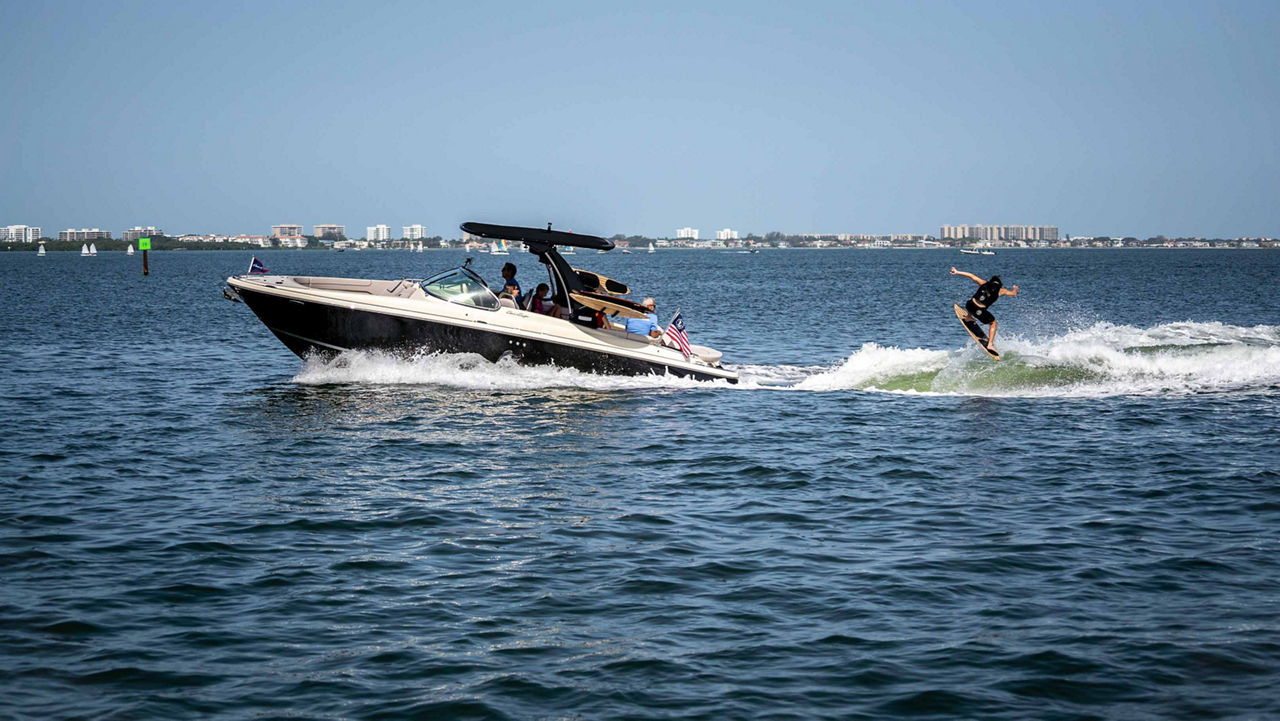

WAKE SURF EDITION / LAUNCH 28 GT
The Wake Surf Edition comes with platinum covered synthetic teak covering boards and swim platform, unique upholstery detailing, gloss dark walnut cockpit accents, Wake WorX surf tabs, power folding black sport arch, carbonite cockpit vinyl accent, ballast system and rearview mirror.
